Dholera Electric Substation Earth Grid: Torrent Power Grounding

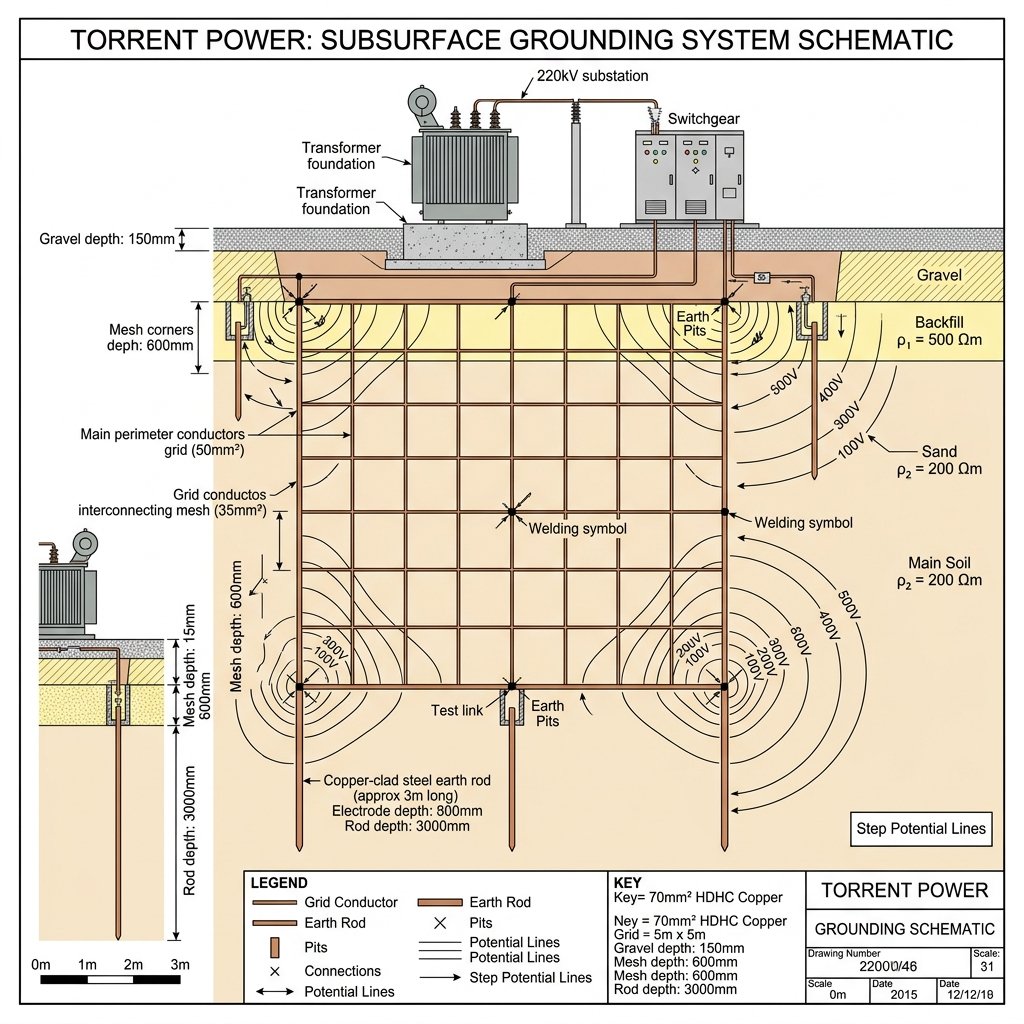

1. Subsurface Grounding Mesh & Marine Clay Soil Physics

The primary function of a substation earth grid is to provide a low-impedance path for fault currents to dissipate into the earth without causing dangerous surface voltage gradients:

• Low Grid Resistance ($\le 1.0\,\Omega$): The overall electrical resistance of a substation grounding grid to the main earth mass must not exceed 1.0 ohm for 33kV/11kV substations, and 0.5 ohm for 220kV/400kV transmission substations.
• HDHC Copper Conductor Mesh: Grounding grids consist of heavy-duty hard-drawn high-conductivity (HDHC) copper conductors or hot-dip galvanized steel flats ($75 \times 10\text{ mm}$ or $50 \times 6\text{ mm}$) buried at a depth of 600mm to 1,000mm beneath prepared surface gravel.
• Gravel Surface Layer: Substation switchyards must be covered with a 150mm thick layer of washed crushed granite/gravel (resistivity $\ge 3,000\,\Omega\cdot\text{m}$) to increase the electrical resistance between a worker’s feet and the underlying soil, significantly raising safe step and touch potential thresholds.

2. Earth Pit Design & Minimum Spacing Rules

To augment the main mesh and reach deeper, low-resistivity soil layers, vertical earth electrodes are driven at key grid nodes:

• Copper-Bonded Steel Earth Rods: Vertical electrodes must measure at least 3.0 meters in length with a diameter of 17.2mm to 20mm, featuring a 254-micron molecular bond of pure copper over a high-tensile steel core.
• 3-Meter Minimum Inter-Pit Spacing: To prevent electrical overlap and mutual resistance interference between adjacent earth pits, vertical electrodes must be spaced at a distance of at least twice the electrode length (minimum 3.0 to 6.0 meters apart).
• Chemical Earth Pits with Bentonite Backfill: In hyper-saline clay areas, earth pits must be backfilled with a non-corrosive, moisture-retaining conductive compound (such as Bentonite or carbon-based backfill) to maintain low earth resistance throughout the dry summer months.

The table below outlines Torrent Power substation earth grid specifications:

3. Step and Touch Potential Safety Caps

Under IEEE 80 standards, grounding grid configurations are engineered to restrict fault voltages to safe levels:

• Touch Potential Safety Limit: The maximum voltage difference between a grounded metallic structure (transformer tank, breaker frame) and a person standing 1 meter away during a 50kA ground fault must not exceed IEEE 80 safety thresholds (typically $< 850\text{ V}$).
• Step Potential Safety Limit: The maximum voltage difference between a person’s feet spaced 1 meter apart on the switchyard gravel surface during a fault must remain below safe limits ($< 2,500\text{ V}$).
• Surge Arrestor Dedicated Grounding: High-voltage lightning surge arrestors must be connected to the main grounding grid via independent, direct down-conductors using the shortest possible path without sharp right-angle bends.

Frequently Asked Questions (FAQ)

#### What is the maximum allowed earth grid resistance for a 33kV substation in Dholera?

Under Torrent Power and GETCO engineering standards, the overall earth grid resistance for a 33kV substation must not exceed 1.0 ohm.

#### Why is crushed gravel spread across Dholera substation switchyards?

A 150mm layer of high-resistivity crushed granite gravel is spread over switchyard soil to increase foot contact resistance, protecting workers from dangerous step and touch potential voltages during ground faults.

#### What is the minimum recommended spacing between substation earth pits?

Vertical earth electrodes must maintain a minimum physical clearance of at least 3.0 to 6.0 meters (twice the length of the earth rod) to avoid mutual resistance overlap.
