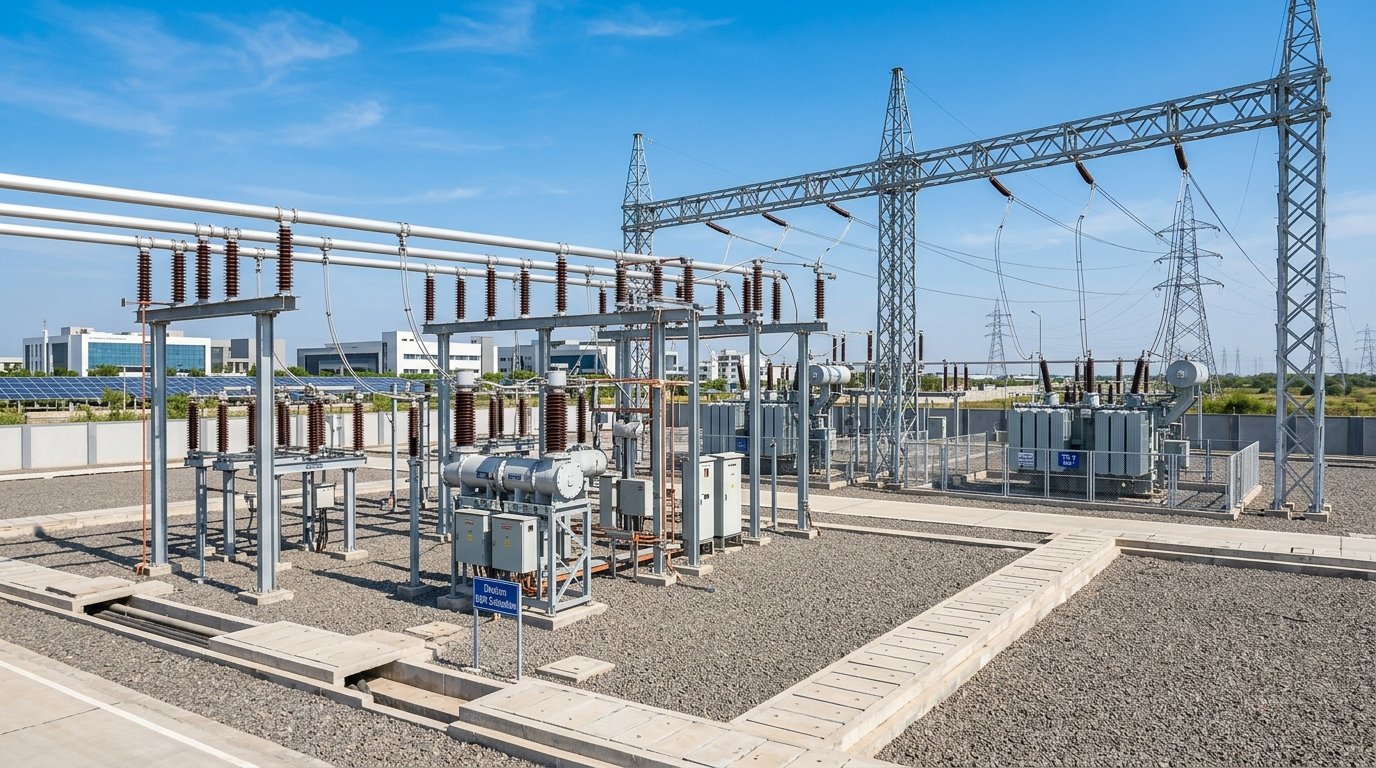

Dholera Substation Bus Bar Sizing Calculations: Current Density Standards and DSIRDA GDCR 2023

Executive Overview

Bus bars are the backbone of power distribution in Dholera Special Investment Region (DSIR) substations — they collect current from generators or incoming feeders and distribute it to multiple outgoing circuits. Under-sized bus bars overheat, oxidize contact surfaces, and can fail catastrophically under short-circuit conditions. Over-sized bus bars waste material cost and increase switchgear bay dimensions unnecessarily.

Bus bar sizing in Dholera substations is governed by the DSIRDA GDCR 2023 Chapter 9 (Electrical Infrastructure), IS 5082:2008 (copper and aluminium bus bars — specification), IEC 60865-1 (short-circuit current effects in three-phase AC systems), IS 1886 (installation and maintenance of power switchgear), and DICDL (Dholera Industrial City Development Limited) Electrical Infrastructure Manual 2022. This article provides sizing methodology, worked examples, and compliance tables for 11 kV, 33 kV, and 132 kV bus bar applications.

1. Regulatory Framework

DSIRDA GDCR 2023 Clause 9.3.1 requires all 11 kV and above bus bar systems in Dholera substations to be designed for a minimum short-circuit withstand duration of 1 second at the rated short-circuit current (Isc) of the system, verified by calculation to IEC 60865-1.

2. Bus Bar Material Properties

DSIRDA Preference: DICDL Electrical Manual 2022 specifies aluminium alloy EN-AW 6101 (IS 5082) as the preferred bus bar material for 11 kV and 33 kV indoor switchgear in Dholera, due to superior strength-to-weight ratio and resistance to Dholera’s saline atmosphere. Copper is preferred for critical connection points (transformer LV terminals, main incomer contacts).

3. Continuous Current Rating and Sizing

3.1 Current Density Method

The quickest sizing approach uses maximum allowable current density:

$$A_{min} = \frac{I_{rated}}{J_{max}}$$

Where: – A_min = minimum cross-sectional area (mm²) – I_rated = rated continuous current (A) – J_max = maximum current density (A/mm²)

Worked Example — 11 kV Indoor Switchgear, 1000 A rated, Aluminium 6101:

$$A_{min} = \frac{1000 \text{ A}}{0.9 \text{ A/mm}^2} = 1111 \text{ mm}^2$$

Select: 2 × 80 mm × 10 mm flat bars (2 × 800 = 1600 mm²) — provides 44% derating margin for thermal contingency.

3.2 Temperature Rise Calculation

Per IS 5082 and IEC 60865:

$$\Delta T = \frac{\rho \cdot I^2}{\lambda \cdot A^2} \cdot \left(\frac{1}{\alpha_{conv} \cdot P_{eff}}\right)$$

Simplified for engineering use — maximum permissible temperature rise:

4. Standard Bus Bar Sections (IS 5082)

4.1 Flat Bus Bar Standard Sections

(Current values at J_max for single flat bar, horizontal on edge, 40 °C ambient)

4.2 Multiple Parallel Bars (Derating)

For multiple flat bars in parallel (to achieve higher current ratings):

Minimum gap between parallel bars: 10 mm (or bar thickness, whichever is greater) for natural convection cooling — DSIRDA GDCR Clause 9.3.5.

5. Short-Circuit Withstand Rating

5.1 Thermal Short-Circuit Current (Ith)

Per IEC 60865-1:

$$A_{SC} = \frac{I_{SC} \times \sqrt{t_{SC}}}{K}$$

Where: – A_SC = minimum CSA for short-circuit withstand (mm²) – I_SC = short-circuit current (kA rms) – t_SC = short-circuit duration (seconds) — DSIRDA minimum 1.0 s – K = material factor (for copper: 143; for aluminium: 94)

Worked Example — 33 kV Bus, I_SC = 25 kA, t_SC = 1.0 s, Aluminium 6101:

$$A_{SC} = \frac{25000 \times \sqrt{1.0}}{94} = 265.9 \text{ mm}^2$$

Select minimum 300 mm² aluminium section. Final selection governed by whichever is larger: continuous rating or short-circuit rating.

5.2 Electromagnetic Force on Bus Bars (Mechanical Rating)

Short-circuit currents produce electromagnetic forces between parallel conductors:

$$F = \frac{2 \times 10^{-7} \times I_{peak}^2 \times L}{d}$$

Where: – F = force per unit length (N/m) – I_peak = peak short-circuit current (A) = I_SC × 2.55 (for X/R = 10) – L = span between supports (m) – d = centre-to-centre distance between conductors (m)

DSIRDA requires bus bar supports to be spaced at ≤ 1.0 m centres for 11 kV indoor switchgear and ≤ 1.5 m for 33 kV outdoor switchyard, with support insulators rated to withstand calculated electromagnetic force × safety factor 2.5.

6. Bus Bar Design for Dholera’s Three Voltage Levels

7. Bus Bar Installation Requirements (DSIRDA GDCR Clause 9.3)

“` TYPICAL 11 kV BUS BAR ARRANGEMENT (INDOOR)

Incoming Bus Section Outgoing Feeders ┌──────────────────────────────────────┐ │ R ═══════════════════════════════ │ ← 3-phase flat bus, R-Y-B │ Y ═══════════════════════════════ │ mounted on edge, 200 mm centres │ B ═══════════════════════════════ │ │ ↑ Support insulator 1.0 m max │ └──────────────────────────────────────┘ Aluminium 2 × 80 × 10 mm per phase Min phase-to-phase clearance: 100 mm (11 kV) “`

8. Surface Treatment and Jointing

Bolted joint torque: Per manufacturer’s table — typically M10 bolt: 20–25 N·m; M12: 35–40 N·m; M16: 60–70 N·m. Use calibrated torque wrench — mandatory per DSIRDA GDCR Clause 9.3.8.
